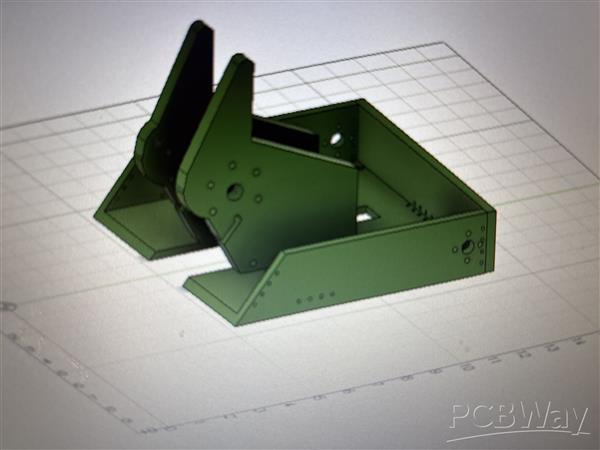

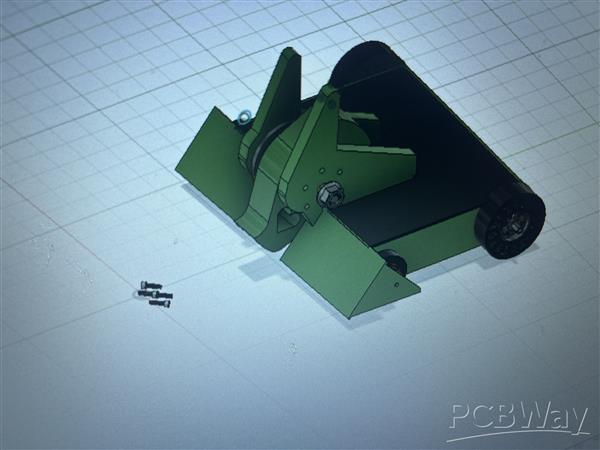

As you’ve seen the image above, this is my 12 pound combat robot. The chassis will be made of 7757 aluminum. Hopefully it is light enough and strong enough to take a decent hit from other robots the chase should weigh about 5 pounds including the upright for the weapon it’s a very compact and lightweight chassis

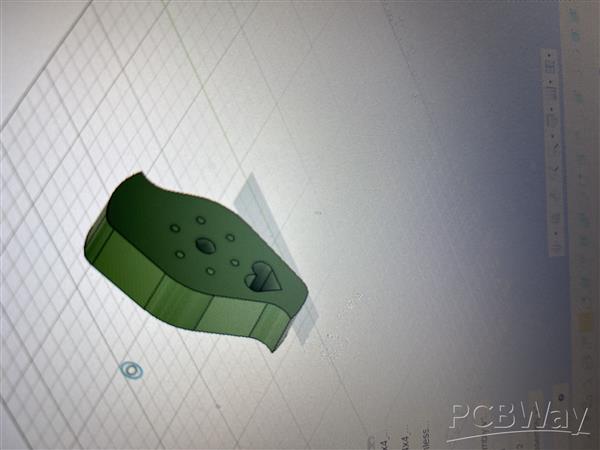

my weapon will be 4 1/2 pounds AR 500 steel. It is a semi asymmetric bar, kind of inspired by bite force and another 12 pound comet robot by the name of queen of hearts. should be able to pack a blow while still not being too heavy is is also very compact

I will also have two wedges in front made of AR 500 or titanium to help protect and also allow the front wheels to be attached and therefore make it a four-wheel-drive via a belt

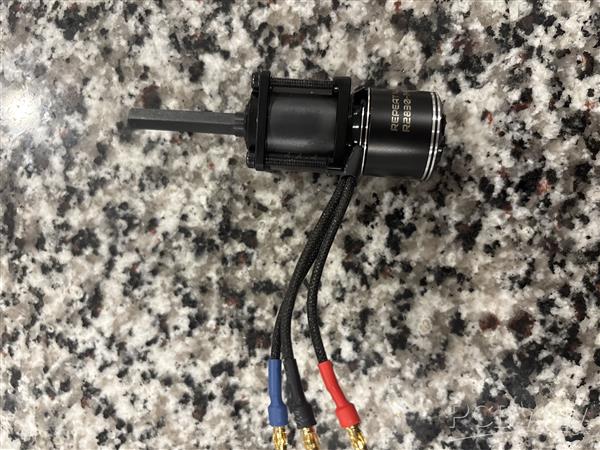

electronics wise, I’ll be using high-quality brushless repeat robotics motors. These motors were made specifically for 12 pound combat robot will also be very durable and compact. Il

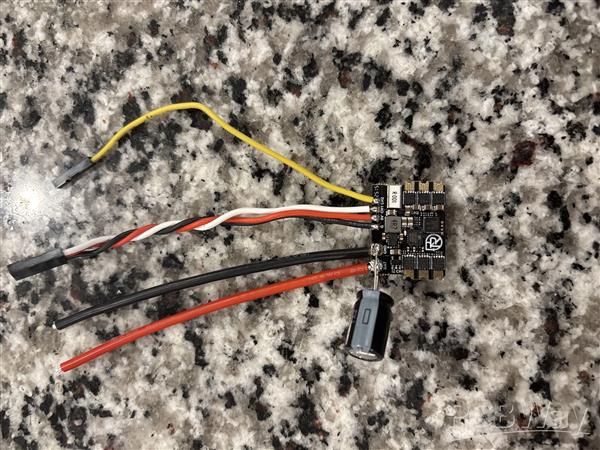

for driving these brushless repeat robotics motors. I will be using a dual brushless repeat robotics dual ESE

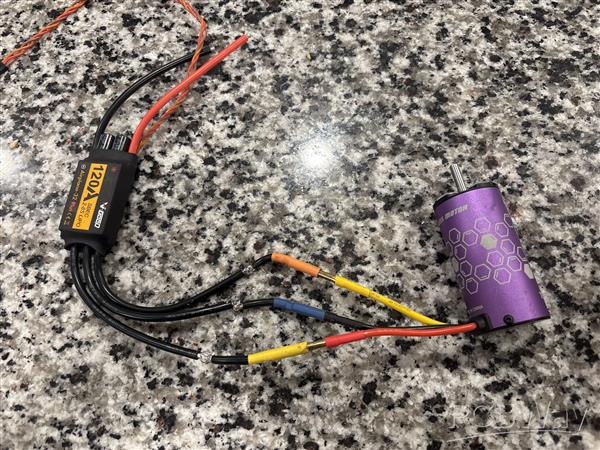

for the weapon motor, I will be using a turning XK3674 1900 KV brushless inrunner motor and power this motor I will be using a 120 amp ESC

altogether, these things will be powered by two Lipo batteries a forest for the drive and a 6S for the weapon and altogether I believe this robot will be very competitive
